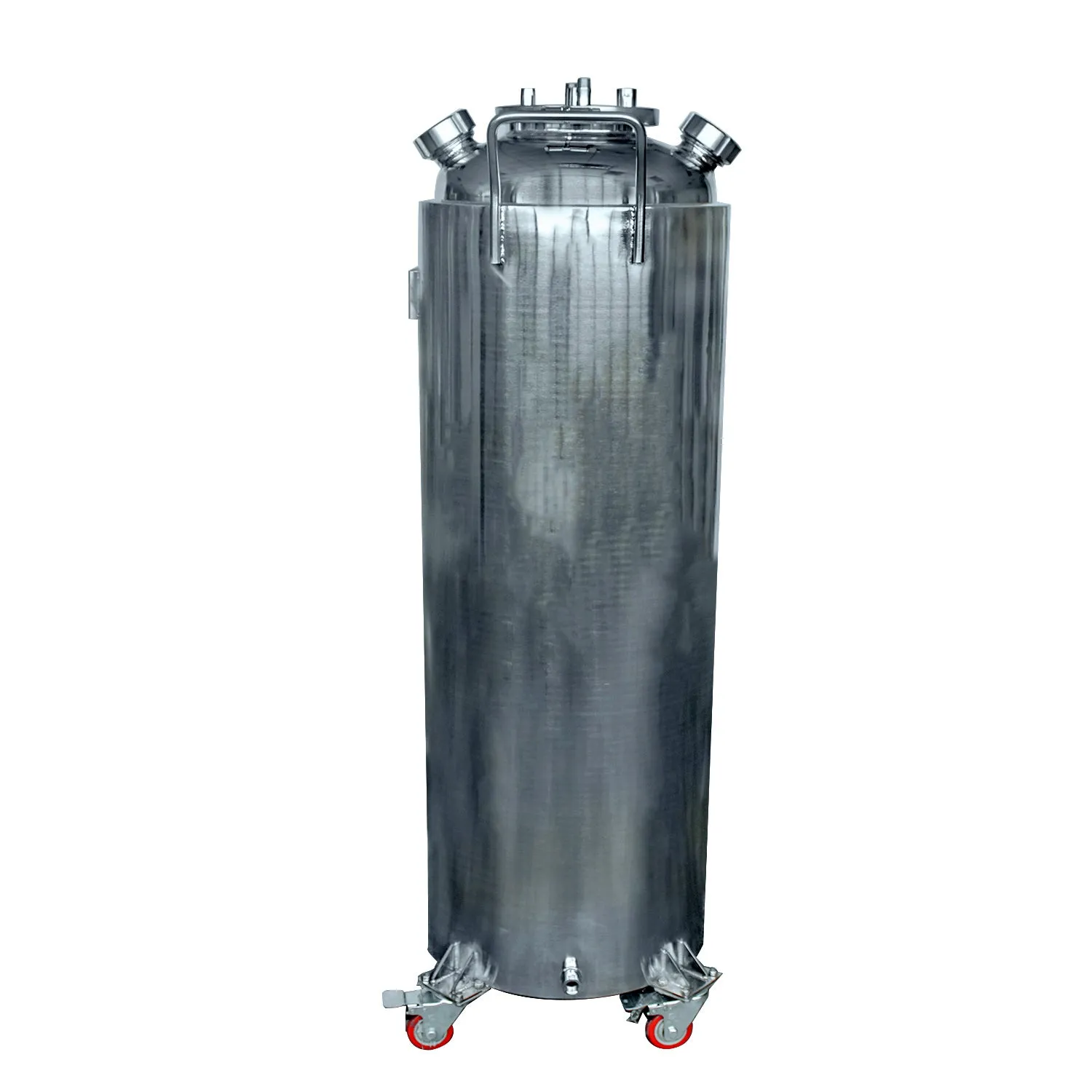

Features:Storage Tank
Material: Stainless Steel
Max Temp. (f): 250
Down Stem Connection Type (in): (1) Tri Clamp 1.5
Down Stem Length (in): 47.8
Recovery Line Connection Type (in): (2) Tri Clamp 1.5
Heat Exchanger Connection Type (in): (2) Tri Clamp 1.5
Coil Count: 40
Jacket Connection Type (in): (2) Tri Clamp 1.5

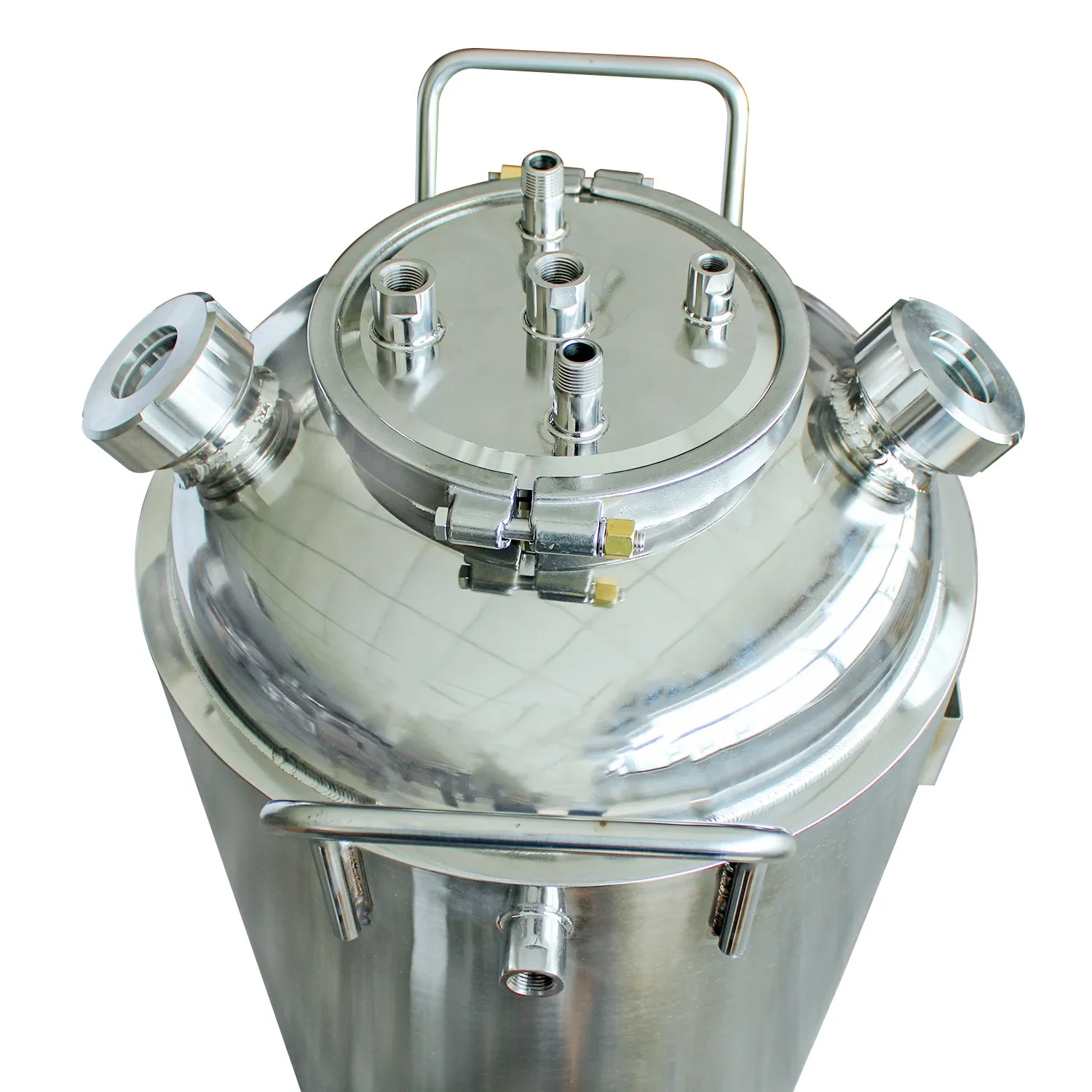

Lid Connection Type (in): (1 ) Tri Clamp 8
Gasket Type (in): Viton 6
Vessel Width (in): 18.1
Vessel Height (in): 50.6
Safety Feature 1 (type): (4) Lock in Breaks
Sight Glass Material (in): (2) Borosilicate 3.3
Sight Glass Gasket Material (in): (2) PTFE 2
Mobility Type: (4) TPU Casters

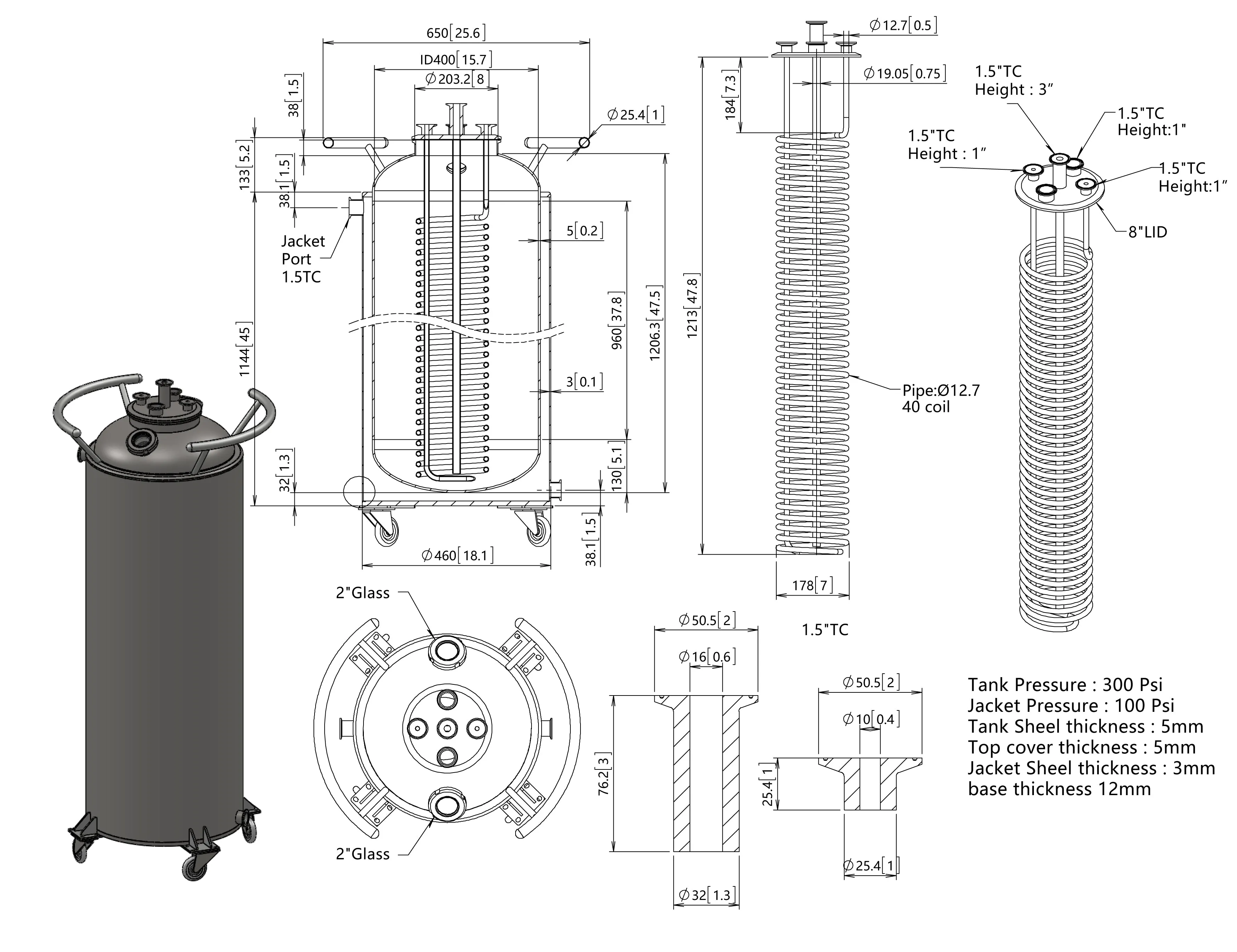

Specifications: Inner Chamber
Inner Diameter (in): 15.7
Wall Density (mm): 5
Volume (Cu In): 9210.35
Volume (Cu ft): 767.53
Fluid Capacity (L): 150.79
Fluid Capacity (Gal): 39.89
Butane Capacity (LBS): 162.96 - 203.70
Propane Capacity (LBS): 129.01 - 161.27
Biomass Capacity (LBS): 47.53 - 67.90
3A Sieve Capacity (LBS): 271.60
Nugget Ice Capacity (LBS): 217.28

Specifications: Jacket
Inner Diameter (in): 18.1
Wall Density (mm): 3
Volume (Cu In): 3168.05
Volume (Cu ft): 264.00
Fluid Capacity (L): 51.87
Fluid Capacity (Gal): 13.72
Butane Capacity (LBS): 56.05 - 70.06
Propane Capacity (LBS): 44.38 - 55.47
Biomass Capacity (LBS): 16.35 - 23.36
3A Sieve Capacity (LBS): 93.42
Nugget Ice Capacity (LBS): 74.74

Specifications: Condenser
Tube Diameter (in): 0.375
Wall Density (mm): 3
Volume (Cu In): 97.10
Volume (Cu ft): 8.09
Fluid Capacity (L): 1.59
Fluid Capacity (Gal): 0.42
Butane Capacity (LBS): 1.72 - 2.15
Propane Capacity (LBS): 1.36 - 1.70
Biomass Capacity (LBS): 0.50 - 0.72
3A Sieve Capacity (LBS): 2.86
Nugget Ice Capacity (LBS): 2.29
